Name: Outflow Wedge Wire Basket – Wedge Wire Basket Manufacturer
Brand: kunshanicm
Rating: 5 (1 reviews)

Description

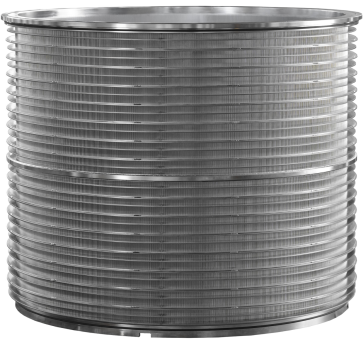

Weld‑Free Construction for Structural Stability
The outflow wedge wire basket eliminates welds by using a mechanical locking structure where wires interlock with support rings. Slot profile achieves tight precision—average deviation stays within ±0.01 mm, 80% within that range, 95% within ±0.02 mm, and all within ±0.03 mm. This wedge wire basket manufacturer approach ensures that slot geometry remains consistent under operational stress, preserving uniform fluid discharge and reducing blockage over extended cycles.

Optimized Slot Design for Efficient Discharge Flow
The basket maintains high open area by combining narrow wedge wires (2.1 mm) with 4 mm support rings. This design enables smoother exit flow with lower backpressure, helping downstream equipment handle filtrate with less resistance. As a wedge wire basket supplier, ICM ensures these features support continuous high‑throughput processes without sacrificing slot stability.

Scalable Dimensions for Diverse Screening Systems

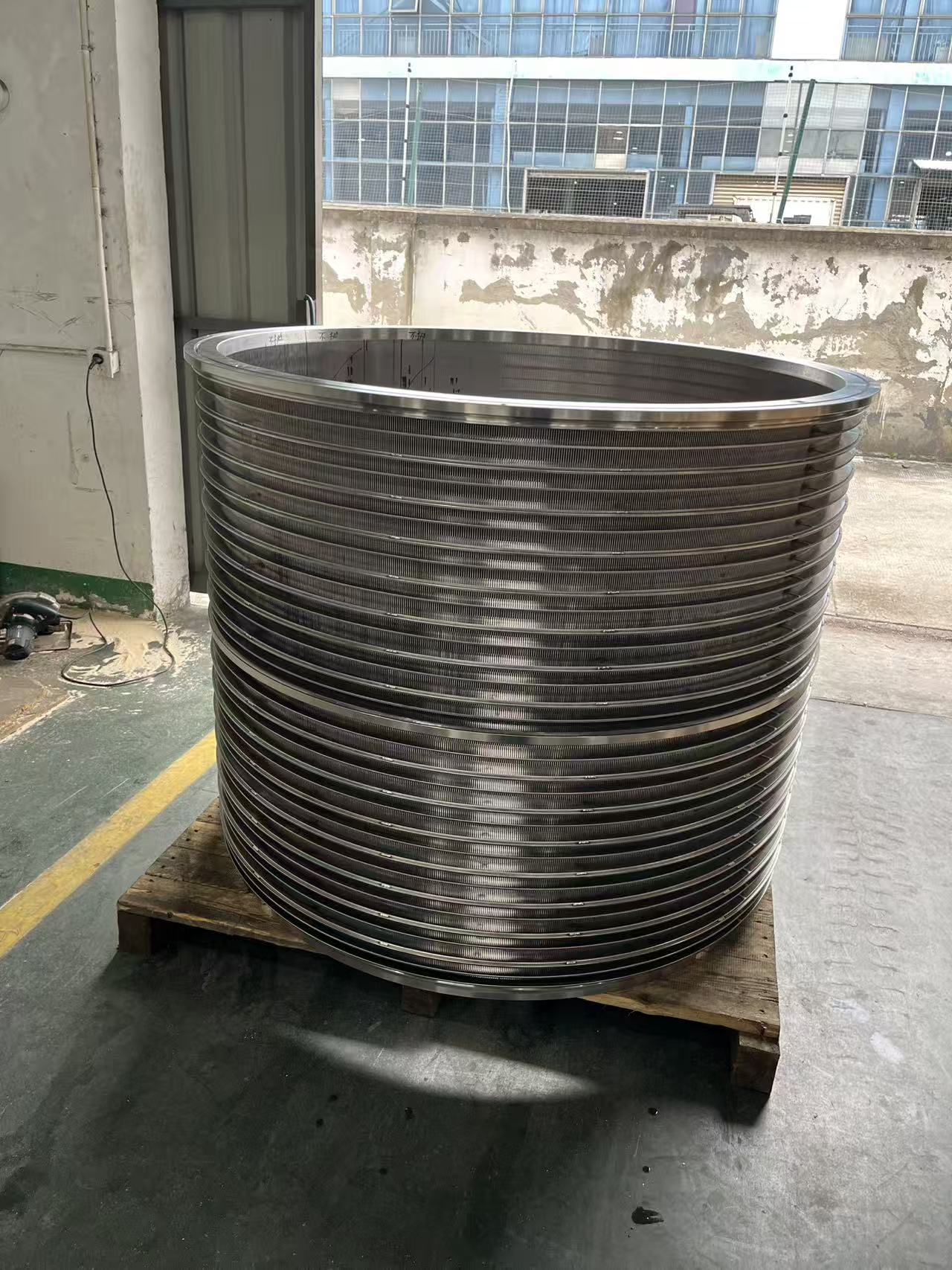

Available up to 1800 mm in outer diameter and 2139 mm in height, the outflow design adapts across various centrifugal, pressure, and gravity sedimentation systems. This size flexibility makes it a practical choice for operators upgrading screens or retrofitting existing setups, delivering consistent wire basket weaving pattern and flow performance even as processing scale increases.

Product Advantages

Mechanical Locking Enhances Durability
By avoiding welding and using a lock-fit assembly, this wedge wire basket resists warping, cracking, and structural fatigue. Its interference‑fit joints stay secure under vibration and thermal cycles, ensuring consistent slot alignment longer than welded alternatives. Customers gain extended service life and reduced replacement frequency, especially in demanding outflow applications.

Slot Precision Guarantees Flow Uniformity
The slot deviation control—±0.01 mm nominal, with 100% within ±0.03 mm—delivers highly predictable filtrate flow profiles. In processes where outflow consistency affects downstream clarity or separation, such as paper fine pulp removal or sludge dewatering, this wedge wire basket manufacturer precision ensures operational stability and repeatable performance.

Low Resistance Design Supports Energy Savings
Despite carrying high open area, thin wedge wires combined with minimal support ring thickness (4 mm) reduce hydraulic drag while maintaining mechanical support. This balance reduces load on motors and pumps, lowering energy use and heat buildup. It is a strategic advantage in systems where energy efficiency and uninterrupted high-flow discharge are critical.

Use Scenarios

Clarified Filtrate Discharge in High‑Throughput Kraft Mills
In kraft pulp mills, maintaining consistent filtrate flow exiting screen housings is vital for process steadiness. Process engineers install the outflow wedge wire basket, relying on its accurate slot exit pattern to regulate downstream volume. The basket manages solid‑liquid separation while preserving discharge velocity, reducing downstream pressure fluctuations and supporting continuous pulp line stability.

Sludge Dewatering in Wastewater Clarifiers
Operators working on wastewater clarifiers benefit from the basket’s smooth outflow profile when removing clarified water. The wire screen baskets’ weld-free weave avoids clogging during cleaning cycles. Maintenance becomes simpler as backwash routines can clear sediment without disturbing slot shape, improving uptime in high-throughput dewatering operations.

Product Recovery in Food Processing Recirculation Systems
In food refining systems, ensuring final product remains uncontaminated requires stable discharge flows. Production technicians use this wedge wire basket in outflow stages to separate solids from liquids post-cooling. The stainless-structured weave resists cleaning agents and CIP cycles, reliably managing discharge without altering texture or contaminating downstream flows.

About Us

ICM, headquartered in Kunshan (between Suzhou and Shanghai), specializes in precision-engineered screening components. Its core products include wedge wire baskets—with inflow, outflow, and cooking variants—alongside perforated and micro-hole basket solutions. Using CNC fabrication and defined mechanical-lock weaving, the company delivers products tailored to pulp & paper, wastewater, food processing, and chemical clients. ICM’s process capability exceeds 450 baskets annually, supporting large-scale needs. Its manufacturing approach emphasizes slot accuracy, mechanical robustness, and custom dimensions aligned with industrial screening system requirements.

Contact ICM now to order an outflow wedge wire basket sized for your filtration system.

FAQ

How precise are the slot openings in manufacturing?
Most slots remain within ±0.01 mm of the nominal, 95% within ±0.02 mm, and all within ±0.03 mm.

Can this basket be sized for existing screen equipment?
Yes, available up to OD 1800 mm × H 2139 mm and customizable to match retrofit needs.

How does the mechanical locking affect cleaning?
The weld-free weave resists deformation under backwash or CIP cycles, making maintenance easier.

Is energy consumption lower than welded models?
Yes, the wider open area and lightweight structure reduce hydraulic resistance, saving power.

Will vibration impact slot uniformity?
The mechanical locking maintains alignment under cyclic loads, ensuring sustained slot consistency.
