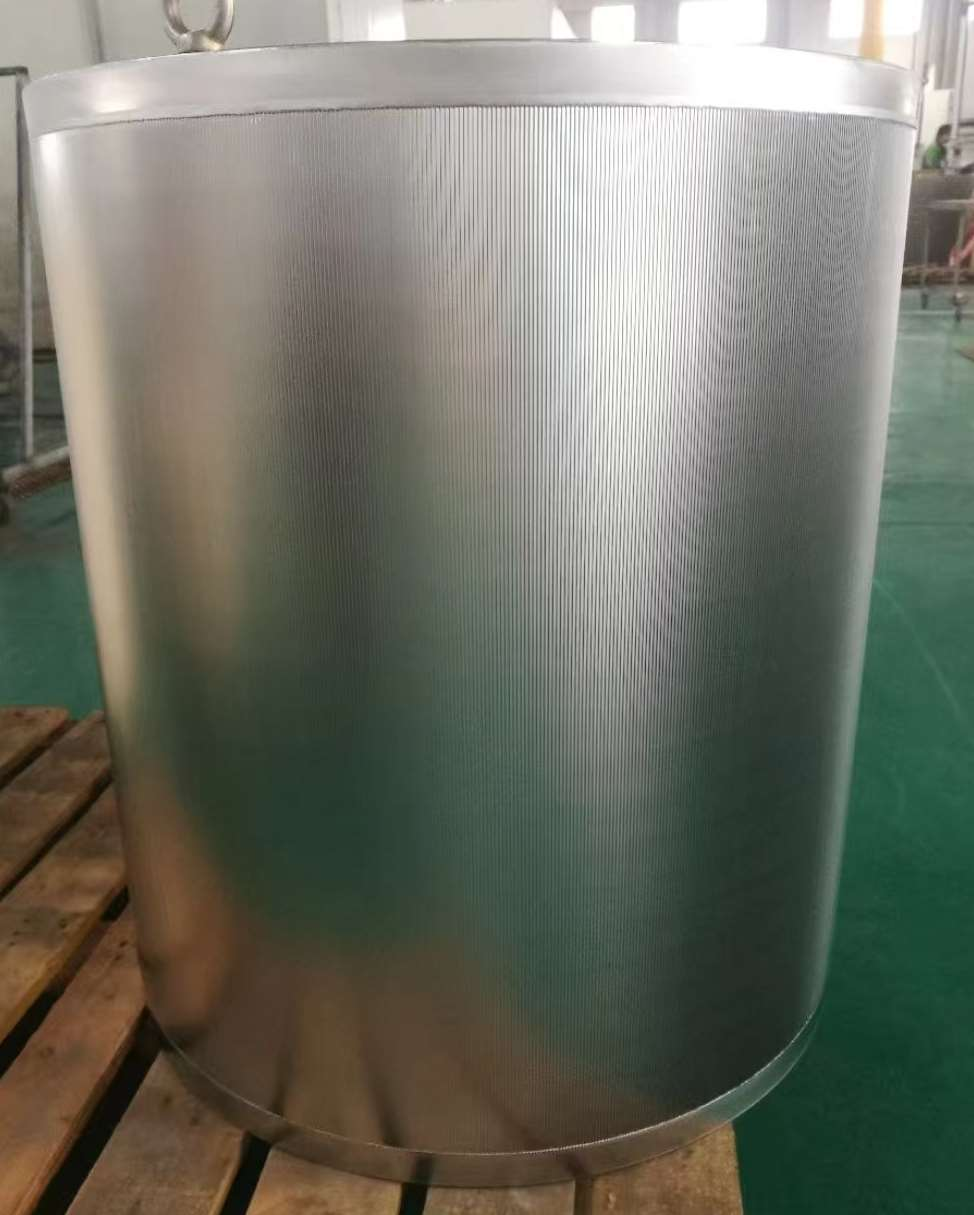

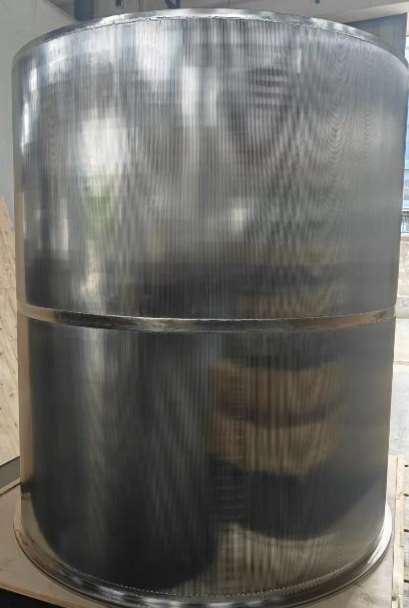

Name: Inflow Wedge Wire Basket for Wire Screen Systems
Brand: kunshanicm
Availability: InStock
Rating: 5 (1 reviews)

Description

Mechanical‑Locked Structure Enhances Slot Accuracy
ICM’s inflow wedge wire basket adopts a mechanical locking construction with no welding between the wedge wires and support rings. Precision reaches ±0.01 mm, with 80 % of slots within that tolerance, 95 % within ±0.02 mm, and full compliance within ±0.03 mm. This wedge wire basket manufacturer approach delivers exceptionally consistent slot widths that maintain stable filtration performance over time, reducing clog formation and wear. The precise slotting supports uninterrupted throughput in pulp screening equipment, minimizing variation in retained solids and ensuring uniform flow resistance.

Energy‑Saving Open Area Design for Industrial Efficiency
The wire basket weaving achieves a maximal open area: the narrowest wire measures 2.1 mm and support ring thickness is 4 mm. This geometry allows 5–10 % power savings compared to welded-structure baskets, reflecting ICM’s attention to energy efficiency. In high-capacity paper and pulping facilities, these savings add up—reducing operating costs and thermal load on drives. The open structure also enables easy cleaning and fluid recovery, supporting maintenance-friendly workflows that align with modern uptime demands.

Scalable Dimensions for Diverse Application Loadings
Available up to 1800 mm outer diameter and 2139 mm height, the ICM wedge wire basket supplier supports large-scale processing installations. Custom sizing accommodates both retrofit and new OEM equipment, ensuring fit across various screening centrifuges and pulp systems. By providing dimensional flexibility while maintaining slot precision, this model bridges system compatibility with performance stability. It’s an ideal solution for facilities balancing throughput scaling with screening accuracy and integration needs.

Product Advantages

Welding-Free Mechanical Locking Ensures Longevity
By employing mechanical locking rather than welding, this wedge wire basket circumvents common failure modes like weld creep, crack initiation, or thermal distortion. The construction preserves alignment under cyclic loads, reducing deformation risk. The interference fit maintains slot geometry over extended duty, lowering wear rates compared to welded alternatives. Customers investing in long-run filtration lines benefit from fewer replacements and predictable maintenance intervals, thanks to the robust mechanical interlocking.

High‑Precision Slot Control Enhances Filtration Consistency
Slots are produced with tight tolerances—±0.01 mm for the majority of openings, and all within ±0.03 mm. This degree of dimension control enhances separation uniformity, critical when removing fines or maintaining particle distribution. For processes sensitive to screen oversizing or under‑sizing, such as fine pulp screening or clarification flows, this wedge wire basket manufacturer quality translates into consistent retention curves and minimal throughput deviation, enabling more predictable product quality and process control.

Integrated Energy Savings Without Performance Trade‑Off
The basket’s design yields 5 % to 10 % energy savings versus welded versions, yet retains high open area via thin wire and efficient support geometry. This reduces hydraulic resistance while maintaining structural integrity. In high-load industrial settings, those energy savings mean smaller motor demands, decreased heat buildup, and reduced operational cost over time. The design balances mechanical strength, slot precision, and energy efficiency in a way that supports both performance and sustainability goals.

Use Scenarios

Pulp Refining Line in Bleached Kraft Mills
In high-volume bleached kraft mills, screening pulp before bleaching is critical to ensure fiber uniformity. Engineers deploy ICM’s inflow wedge wire basket in pressure screen systems to filter out shives and oversized particles under continuous flow. The basket’s precise slots maintain consistent throughput even as fiber concentration varies. Its mechanical-locking construction holds up against the high-frequency vibrations and temperature fluctuations common in these refining zones. Compared to traditional welded screens, this wedge wire basket offers longer service life, lowering downtime for rotor adjustments or unplanned screen replacements.

Centrifugal Screens in Fiber Recovery Units
During secondary fiber recovery, operators must efficiently reclaim pulp while minimizing contamination. ICM’s basket, manufactured with precision wire basket weaving, integrates easily with horizontal centrifugal screen housings. Its open area allows recovered fiber to pass through with reduced clogging, while contaminants remain retained. Operators favor the fast backflushing enabled by the smooth wedge wire surface, which improves turnaround between cleaning cycles. This functionality supports uninterrupted operation in facilities aiming for zero fiber loss and better water reuse performance.

Fine Slurry Screening in Food-Grade Additive Plants
In starch and food-additive manufacturing, screening of viscous slurry must meet hygiene and dimensional accuracy requirements. Technicians install this wedge wire basket into custom-built hygienic housings to separate suspended particles during cooling or refining stages. The corrosion-resistant stainless steel and weld-free design ensure compatibility with CIP cycles and low pH environments. As a result, screening integrity is preserved across cleaning cycles, while the uniform slots—standardized by leading wedge wire basket suppliers—prevent unwanted variation in slurry texture or final product quality.

About Us

ICM is a precision manufacturer based in Kunshan, China, specializing in industrial screening solutions. The company offers an extensive range of products including wedge wire baskets, wedge wire screens, and perforated filtration components. With years of industry experience and CNC-based production capabilities, ICM serves clients across pulp and paper, wastewater treatment, food processing, and chemical sectors. The team combines engineering expertise with material science knowledge to ensure dimensional precision, mechanical durability, and operational compatibility across all products. Each ICM solution is developed to meet demanding production environments and equipment interfaces, enabling system integrators and OEMs to achieve reliable throughput, reduced downtime, and efficient screening across large-scale industrial applications.

Contact ICM today to customize your wedge wire basket for high-efficiency screening systems.

FAQ

Can this basket be retrofitted into my existing screening system?
Yes, ICM supports custom sizing and ring configuration to match most OEM pressure and centrifugal screens.

Are there options for food-grade or chemical-resistant materials?
The basket is made of stainless steel with corrosion-resistant finish and is compatible with CIP cleaning protocols.

What is the typical lead time for production and delivery?
Standard configurations ship within 2–3 weeks. Custom orders may take 3–5 weeks depending on complexity.

Does the basket require special maintenance tools?
No, the basket is designed for standard plant maintenance. Its open structure supports easy rinsing and inspection.

Is the mechanical-lock design suitable for high-vibration environments?
Absolutely. The interference-fit structure prevents loosening and performs well under cyclical load and vibration.
